Elexon API UK Electricity Grid Data using Python

Downloading, cleaning & joining UK electricity grid data with pandas, requests and pydantic.

Created: Dec 2016 Updated: Oct 2025
Blog Data Engineering Energy Time Series

This post demonstrates how to use Python to download UK electricity data using the Elexon API - specifically data for the imbalance price - both the imbalance prices and imbalance volumes.

In this post we will use the Python packages pandas for data processing, requests making HTTP requests and pydantic for structuring our data.

This work is inspired by Patrick Avis - the credit for this work will always be with Patrick!

The ELEXON API

Elexon provides generation, volume and price data for the UK electricity grid through the Balancing Mechanism Reporting Service (BMRS) - the BRMS can best thought of as a dataset.

The Elexon API guide provides detail on the data available through the BRMS. In this post we will be working with reports B1770 for imbalance prices and B1780 for the imbalance volumes.

The BRMS data is available through the Elexon Portal (through your web browser) or the Elexon API (to access data programmatically). Both require a free Elexon account.

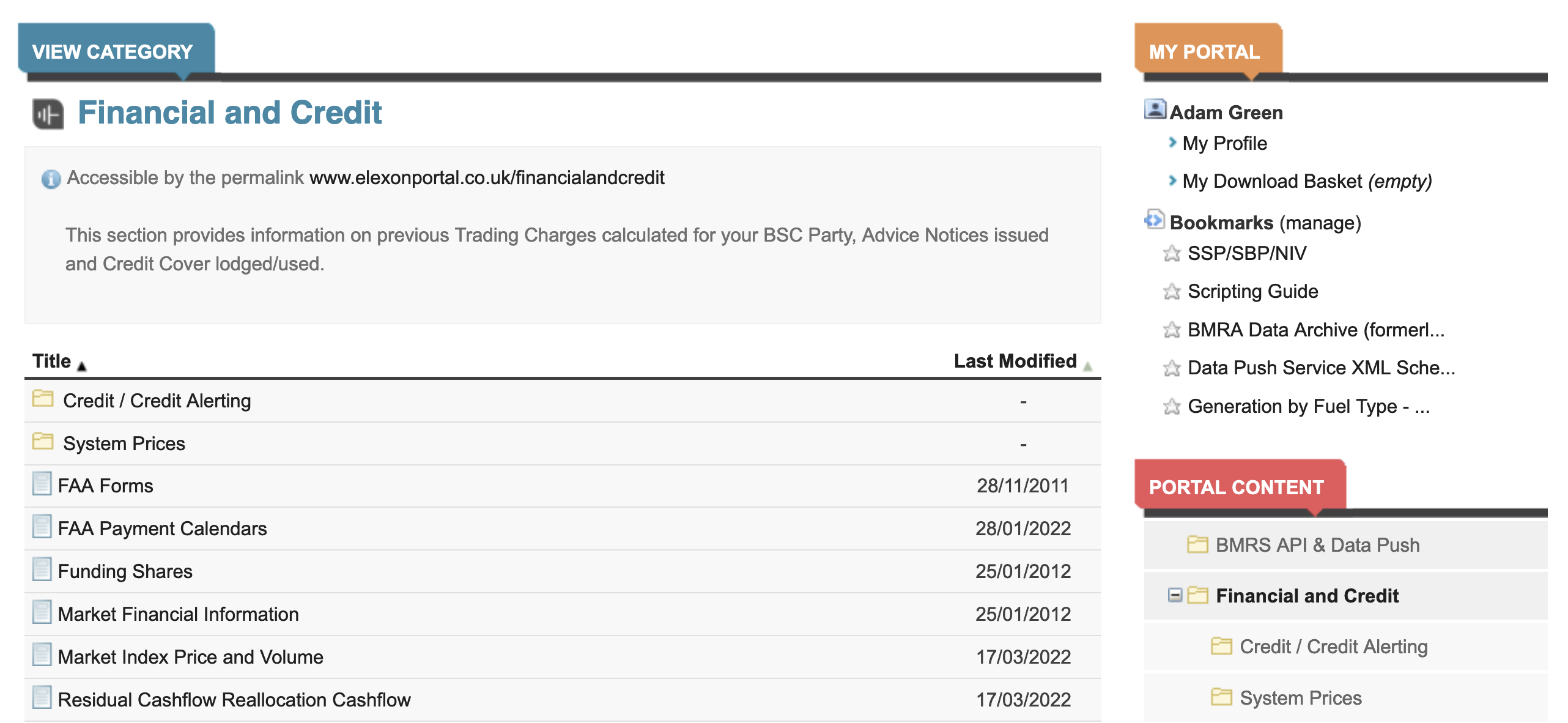

You will need to be logged in to your Elexon account to use the portal, or else you will not see the data:

Elexon Portal - login required to view data

You will also need to create an Elexon account to use the API, as you need an API key (called a scripting key by Elexon) which you can find in the profile section of your Elexon account.

Python Requirements

You can install the Python packages needed to run the Python program with:

$ pip install pandas pydantic requests

The core logic of our program is below (without the required imports):

url = f"https://api.bmreports.com/BMRS/{report}/v1?APIKey={api_key}&Period=*&SettlementDate={date}&ServiceType={service_type}"
res = requests.get(url)
(Path.cwd() / "data.csv").write_text(res.text)
data = pd.read_csv("./data.csv", skiprows=4)

The full program we develop is given at the end of the post.

Scraping the Elexon API

Let’s start by requesting data from the Elexon API. We do this by making a HTTP request to a URL.

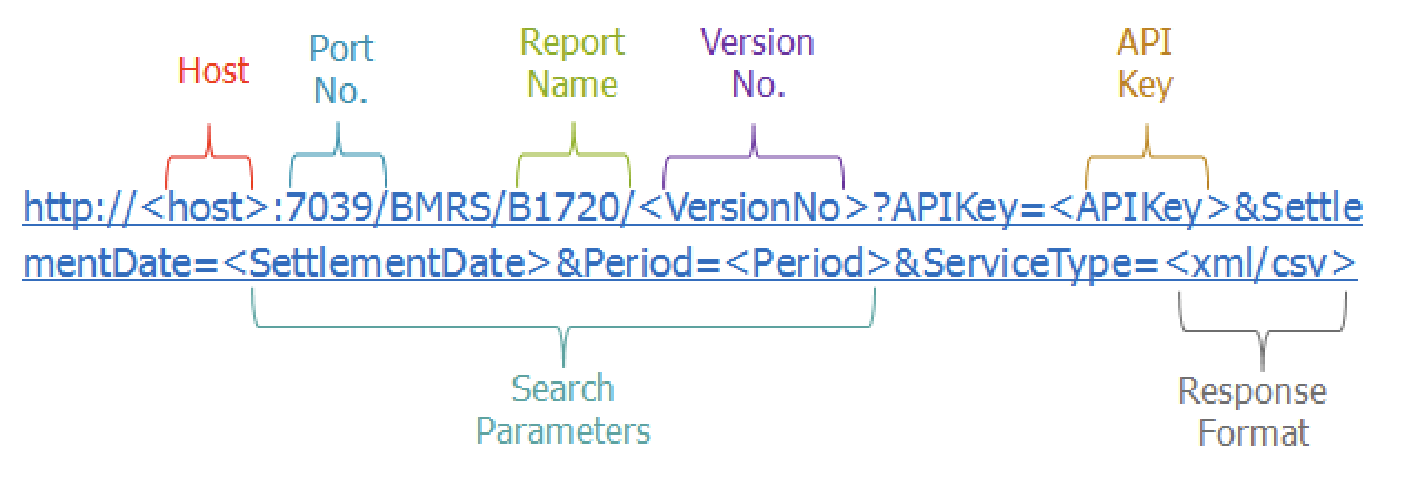

The Elexon API documentation specifies how we need to format our URL:

Elexon API URL format specification

We will need to specify a few things to get the data we want: the report name (like B1770), our API key, the settlement date (like 2020-01-01) and the data format we want back (either XML or CSV).

Managing Secrets

The API key (which you can get through the Elexon portal) is a secret - it will not end up as part of our codebase.

One way to manage secrets is to create a file secret.py, which we can import from in other Python scripts:

#  secret.py
api_key = "your-api-key-here"

Very important that this file secret.py does not end up in your source control (commonly Git) - this file should be added to your .gitignore or equivalent. If secrets are in your source control, you are going to have a bad time.

In production environments these secrets are often managed at build/deploy time - where the secret is injected into the environment as environment variables.

Creating the Request

Before we create our URL in as a string Python, we will define a pydantic type called ElexonRequest, to organize the data we need in the URL:

import datetime
import pydantic
from secret import api_key


class ElexonRequest(pydantic.BaseModel):
    report: str
    date: datetime.date
    api_key: pydantic.SecretStr = pydantic.SecretStr(api_key)
    service_type: str = "csv"


req = ElexonRequest(report="B1770", date="2020-01-01")
# report='B1770' api_key=SecretStr('**********') date=datetime.date(2020, 1, 1) service_type='csv'

We can access data using the attribute (.) syntax:

print(req.report, req.date, req.service_type)
# B1770 2020-01-01 csv

Now we have the data we need for a request, we can create our URL using a Python f-string:

url = f"https://api.bmreports.com/BMRS/{req.report}/v1?APIKey={req.api_key}&Period=*&SettlementDate={req.date.isoformat()}&ServiceType={req.service_type}"
# https://api.bmreports.com/BMRS/B1770/v1?APIKey=**********&Period=*&SettlementDate=2020-01-01&ServiceType=csv

When we print the URL, the secret is hidden! This is because we used a SecretStr type for the API key. If we want to access the secret in api_key, we need to use api_key.get_secret_value().

Making the HTTP Request

Now we have our URL, we can use the Python library requests to call the Elexon API by making an HTTP request to the web server behind this URL - the same way your browser sends HTTP requests to a server to access a web page.

Along the way we check that the status code of the HTTP response is 200 (200 means everything is ok):

import requests

req = ElexonRequest(report="B1770", api_key=api_key, date="2020-01-01")
url = f"https://api.bmreports.com/BMRS/{req.report}/v1?APIKey={req.api_key.get_secret_value()}&Period=*&SettlementDate={req.date.isoformat()}&ServiceType={req.service_type}"
res = requests.get(url)
assert res.status_code == 200
print(res.text[:512])
# *
# *
# *Imbalance Prices Service For Balancing (B1770) Data
# *
# *DocumentID,DocumentRevNum,ActiveFlag,...

Saving and Loading Data

Now all we need to do is save this raw data as a CSV file - making no changes to the data on the way.

We can use pathlib to dump this text to a file in a folder called data:

from pathlib import Path

fi = Path().cwd() / "data" / f"{req.report}-{req.date}.csv"
fi.parent.mkdir(exist_ok=True)
fi.write_text(res.text)

We can use the shell command head to look at the first 7 lines of this file:

$ head -n 7 data/B1770-2020-01-01.csv
*
*
*Imbalance Prices Service For Balancing (B1770) Data
*
*DocumentID,DocumentRevNum,ActiveFlag,ProcessType,...

We can then load this data back again using the Python library pandas - skipping the first 4 rows (they are not valid CSV data):

import pandas as pd

data = pd.read_csv("./data/B1770-2020-01-01.csv", skiprows=4)

One final thing we may want to clean is to remove the final row (which contains <EOF> - end of file):

data = data.dropna(axis=0, subset=["SettlementDate"])

This is current best practice in data engineering - saving the raw data and starting the next step by loading the data back again.

It may seem inefficient in terms of storage (it is) - but storage is cheap, and this system allows more flexible and independent data pipeline design.

Creating datasets from the Elexon API

In this section we will create two datasets - one for each report (B1770 & B1780).

Above we have created the code to send a single request to the Elexon API - let’s wrap it up inside a function:

import datetime
from pathlib import Path

import requests
import pandas as pd
import pydantic

from secret import api_key


class ElexonRequest(pydantic.BaseModel):
    report: str
    date: datetime.date
    api_key: pydantic.SecretStr = pydantic.SecretStr(api_key)
    service_type: str = "csv"


def send_elexon_request(req: ElexonRequest) -> pd.DataFrame:
    url = f"https://api.bmreports.com/BMRS/{req.report}/v1?APIKey={req.api_key.get_secret_value()}&Period=*&SettlementDate={req.date.isoformat()}&ServiceType={req.service_type}"
    res = requests.get(url)
    assert res.status_code == 200

    fi = Path().cwd() / "data" / f"{req.report}-{req.date}.csv"
    fi.parent.mkdir(exist_ok=True)
    fi.write_text(res.text)

    data = pd.read_csv(fi, skiprows=4)
    #  B1770 has SettlementDate, B1780 has Settlement Date
    data.columns = [d.replace(" ", "") for d in data.columns]
    return data.dropna(axis=0, subset=["SettlementDate"])

We can run our function using a single ElexonRequest:

data = send_elexon_request(ElexonRequest(report="B1770", date="2020-01-01"))

But we want to make many requests - for two reports and many settlement dates.

Below we use a defaultdict to hold this data - iterating over both reports and dates to create two datasets:

from collections import defaultdict

dataset = defaultdict(list)
for report in ["B1770", "B1780"]:
    for date in pd.date_range("2020-01-01", "2020-01-03", freq="D"):
        data = send_elexon_request(ElexonRequest(report=report, date=date))
        dataset[report].append(data)

We can then take these lists of data and create a single dataframe for each report:

for report, data in dataset.items():
    data = pd.concat(data, axis=0)
    data.to_csv(f"./data/{report}-all.csv", index=False)
    print(f"combined {len(data)} days for {report} into {data.shape}")
    # combined 288 days for B1770 into (288, 15)
    # combined 144 days for B1780 into (144, 15)

Joining our two reports together

At this stage we have two CSV files - one per report. Joining them together will require a bit more data cleaning.

There are two things we want to fix in data cleaning:

  • Flatten B1770: It currently has twice as many rows than B1780, due to stacking of the long & short imbalance prices
  • Create a proper datetime column: A column that combines the period and the date into a datetime for joining

Flattening B1770

Notice above how report B1770 has twice the amount of data as B1780? This is because the long and short imbalance prices are stacked on top of each other. This is not tidy data - we do not have one row per observation.

We can solve this problem using a pivot:

class ElexonReport(pydantic.BaseModel):
    report: str
    columns: list


rep = ElexonReport(
    report="B1770",
    columns=[
        "SettlementDate",
        "SettlementPeriod",
        "ImbalancePriceAmount",
        "PriceCategory",
    ],
)

data = pd.read_csv(f"./data/{rep.report}-all.csv")

data = (
    data.pivot(
        index=["SettlementDate", "SettlementPeriod"],
        columns="PriceCategory",
        values="ImbalancePriceAmount",
    )
    .sort_index()
    .reset_index(drop=True)
)

Making our datetime column

Now that we have a flat, tidy dataset, we can create a proper timestamp column to join on - by creating a date range:

data["datetime"] = pd.date_range(
    start=data["SettlementDate"].min(),
    periods=len(data),
    freq="30T",
    tz="Europe/London",
)

print(
    data.loc[
        :,
        [
            "SettlementDate",
            "SettlementPeriod",
            "datetime",
            "Excess balance",
            "Insufficient balance",
        ],
    ].iloc[:3, :]
)
# PriceCategory SettlementDate  SettlementPeriod                  datetime  Excess balance  Insufficient balance
# 0                 2020-01-01               1.0 2020-01-01 00:00:00+00:00        50.90000              50.90000
# 1                 2020-01-01               2.0 2020-01-01 00:30:00+00:00        51.00000              51.00000
# 2                 2020-01-01               3.0 2020-01-01 01:00:00+00:00        29.37006              29.37006

Cleaning Pipeline

Here is our full cleaning pipeline - from our CSV datasets (one per report) on disk to a single dataset:

reports = [
    ElexonReport(
        report="B1770",
        columns=[
            "SettlementDate",
            "SettlementPeriod",
            "ImbalancePriceAmount",
            "PriceCategory",
        ],
    ),
    ElexonReport(
        report="B1780",
        columns=[
            "SettlementDate",
            "SettlementPeriod",
            "ImbalanceQuantity(MAW)",
            "ImbalanceQuantityDirection",
        ],
    ),
]

dataset = {}
for rep in reports:
    data = pd.read_csv(f"./data/{rep.report}-all.csv")
    data = data.loc[:, rep.columns]

    if rep.report == "B1770":
        data = (
            data.pivot(
                index=["SettlementDate", "SettlementPeriod"],
                columns="PriceCategory",
                values="ImbalancePriceAmount",
            )
            .sort_index()
            .reset_index()
        )

    data = data.sort_values(["SettlementDate", "SettlementPeriod"])

    data["datetime"] = pd.date_range(
        start=data["SettlementDate"].min(),
        periods=len(data),
        freq="30T",
        tz="Europe/London",
    )
    data = data.set_index("datetime")
    dataset[rep.report] = data

final = pd.concat(dataset.values(), axis=1)
final.to_csv("./data/final.csv")
final = final.loc[:, ~final.columns.duplicated()]

Final Data Pipeline

And here is the entire pipeline - both the downloading of the data and the data cleaning pipeline:

from collections import defaultdict
import datetime
from pathlib import Path

import requests
import pandas as pd
import pydantic

from secret import api_key


class ElexonRequest(pydantic.BaseModel):
    report: str
    date: datetime.date
    api_key: pydantic.SecretStr = pydantic.SecretStr(api_key)
    service_type: str = "csv"


class ElexonReport(pydantic.BaseModel):
    report: str
    columns: list


def send_elexon_request(req: ElexonRequest) -> pd.DataFrame:
    url = f"https://api.bmreports.com/BMRS/{req.report}/v1?APIKey={req.api_key.get_secret_value()}&Period=*&SettlementDate={req.date.isoformat()}&ServiceType={req.service_type}"
    res = requests.get(url)
    assert res.status_code == 200

    fi = Path().cwd() / "data" / f"{req.report}-{req.date}.csv"
    fi.parent.mkdir(exist_ok=True)
    fi.write_text(res.text)

    data = pd.read_csv(fi, skiprows=4)
    #  B1770 has SettlementDate, B1780 has Settlement Date
    data.columns = [d.replace(" ", "") for d in data.columns]
    return data.dropna(axis=0, subset=["SettlementDate"])


if __name__ == "__main__":
    reports = [
        ElexonReport(
            report="B1770",
            columns=[
                "SettlementDate",
                "SettlementPeriod",
                "ImbalancePriceAmount",
                "PriceCategory",
            ],
        ),
        ElexonReport(
            report="B1780",
            columns=[
                "SettlementDate",
                "SettlementPeriod",
                "ImbalanceQuantity(MAW)",
                "ImbalanceQuantityDirection",
            ],
        ),
    ]

    dataset = defaultdict(list)
    for rep in reports:
        for date in pd.date_range("2020-01-01", "2020-01-03", freq="D"):
            dataset[rep.report].append(
                send_elexon_request(ElexonRequest(report=rep.report, date=date))
            )

    for report, data in dataset.items():
        data = pd.concat(data, axis=0)
        data.to_csv(f"./data/{report}-all.csv")
        print(f"combined {len(data)} days for {report} into {data.shape}")

    dataset = {}
    for rep in reports:
        data = pd.read_csv(f"./data/{rep.report}-all.csv").loc[:, rep.columns]

        if rep.report == "B1770":
            data = (
                data.pivot(
                    index=["SettlementDate", "SettlementPeriod"],
                    columns="PriceCategory",
                    values="ImbalancePriceAmount",
                )
                .sort_index()
                .reset_index()
            )

        data = data.sort_values(["SettlementDate", "SettlementPeriod"])
        data["datetime"] = pd.date_range(
            start=data["SettlementDate"].min(),
            periods=len(data),
            freq="30T",
            tz="Europe/London",
        )
        dataset[rep.report] = data.set_index("datetime")

    final = pd.concat(dataset.values(), axis=1)
    final = final.loc[:, ~final.columns.duplicated()]
    final.to_csv("./data/final.csv")

Summary

This post demonstrated how to:

  • Access the Elexon API: Using Python requests with proper API key management using pydantic.SecretStr
  • Download UK electricity grid data: For both imbalance prices (B1770) and volumes (B1780)
  • Clean and transform data: Using pandas to pivot stacked data and create proper datetime indices
  • Join multiple datasets: Combining price and volume data into a single, tidy dataset
  • Follow data engineering best practices: Saving raw data before processing, using type hints with pydantic, and creating modular, reusable functions

Thanks for reading!
